China Manufacturers for Mechanical Diaphragm Duplex Cylinder Diaphragm Dosing Pump Industrial Diaphragm Dosing Pump export to Armenia Factory

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 10 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

We not only will try our greatest to supply excellent solutions to just about every consumer, but also are ready to receive any suggestion offered by our consumers for Industrial Diaphragm Dosing Pump,Dosing Pump Water Industrial,Metering Pump Used for Water Plane. invite all interested buyers to visit our website or contact us directly for further information.

China Manufacturers for Mechanical Diaphragm Duplex Cylinder Diaphragm Dosing Pump Industrial Diaphragm Dosing Pump export to Armenia Factory

Product Description

The JXM-A series of dosing pumps offer the high performance with the capacity up to 1200L/H and with outstanding values for pressure applications up to 12 Bar. This series dosing pump is designed for durability and cost effectiveness, which is welcome to be unsed in lots of lines, such as the water treatment, chemical, power, food and beverage, paper, textile etc.

l/h

  (Mpa)



(mm)

(mm)

(KW)

(KG)

JXM-A 2.25/1.2

2.25

1.2

36

1.2

DN8

0.37KW

18

JXM-A 4.5/1.2

4.5



JXM-A 9/1.2

9

144

JXM-A 22/1.2

22

72

4

DN15

JXM-A 44/1.2

44

144

JXM-A 85/1.0

85

1

72

6

JXM-A 120/0.7

120

0.7

72

8

JXM-A 170/0.7

170

144

6

JXM-A 240/0.7

240

144

8

DN25

JXM-A 315/0.5

315

0.5

144

8

0.55KW

JXM-A 400/0.5

400

144

10

JXM-A 500/0.5

500

180

Diaphragm Dosing pump water industrial

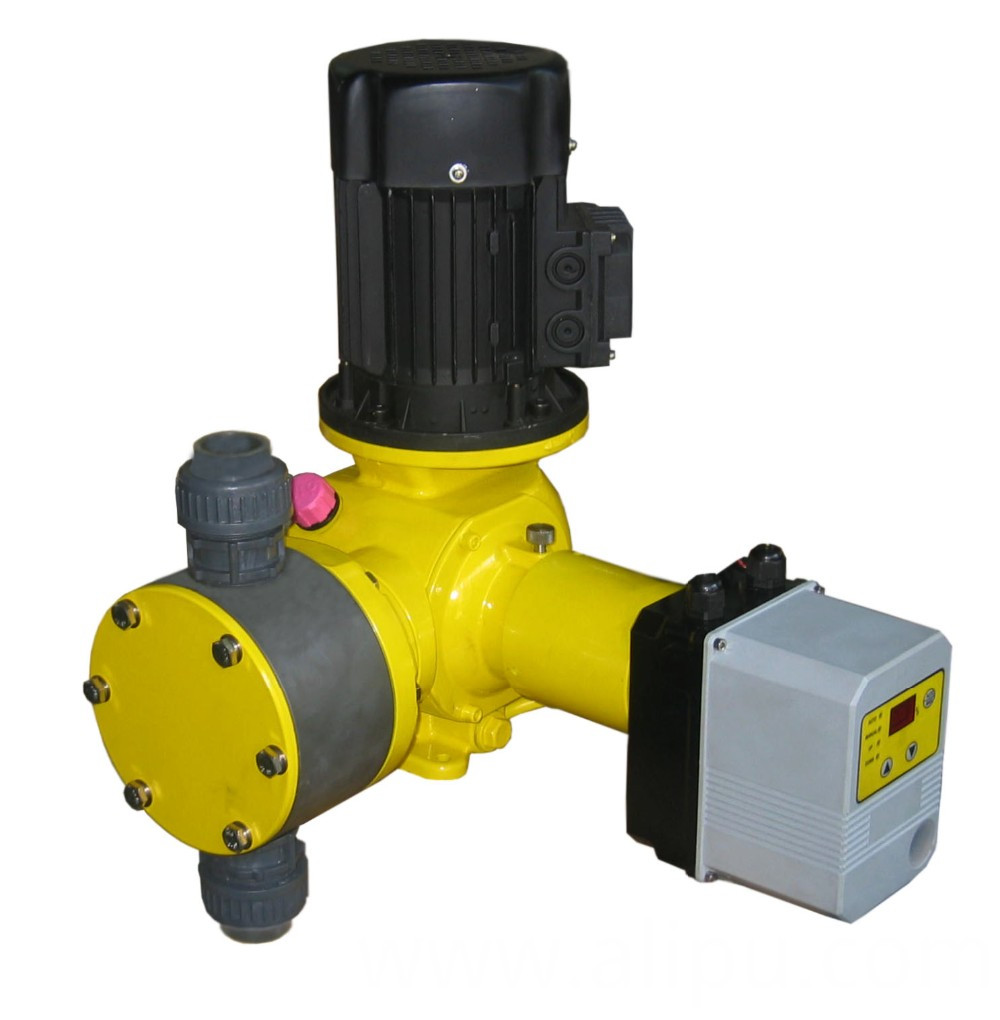

Products Show
Diaphragm Dosing pump water industrial

Technical Specifications

* Flow rates up to 500L/H, pressure up to 12Bar

* Adjustment of flowrate from 0% - 100% while running or stopped

* Accuracy +/- 2% of 100% rated flow

* Mechanically actuated PTFE diaphragm

* Maximum temperature of pumped fluid: +10℃ - 40℃

* Maximum suction up to 2M

Features & Benefits

* Mechanical actuated diagragm design, easy operation and with the convenience maintanence

* Changeable eccentric drive, no leakage with security delivery

* Rugged construction designed to withstand tough environments

* Oil bath lubrication for all of drive components

* Various pump head material (PVC, PVDF, SS304, SS316 etc.) to meet different solution needs

* Available with the manual control and digital control model

Control

* Stroke actuator with 4-20mA signal
* Digital controller with 4-20mA signal

Others

* The Pump can be used to deliver the solution which is high-viscosity, corrosive and dangerous

* Diaphragm rupture detection system (Double diaphragm) is optional.

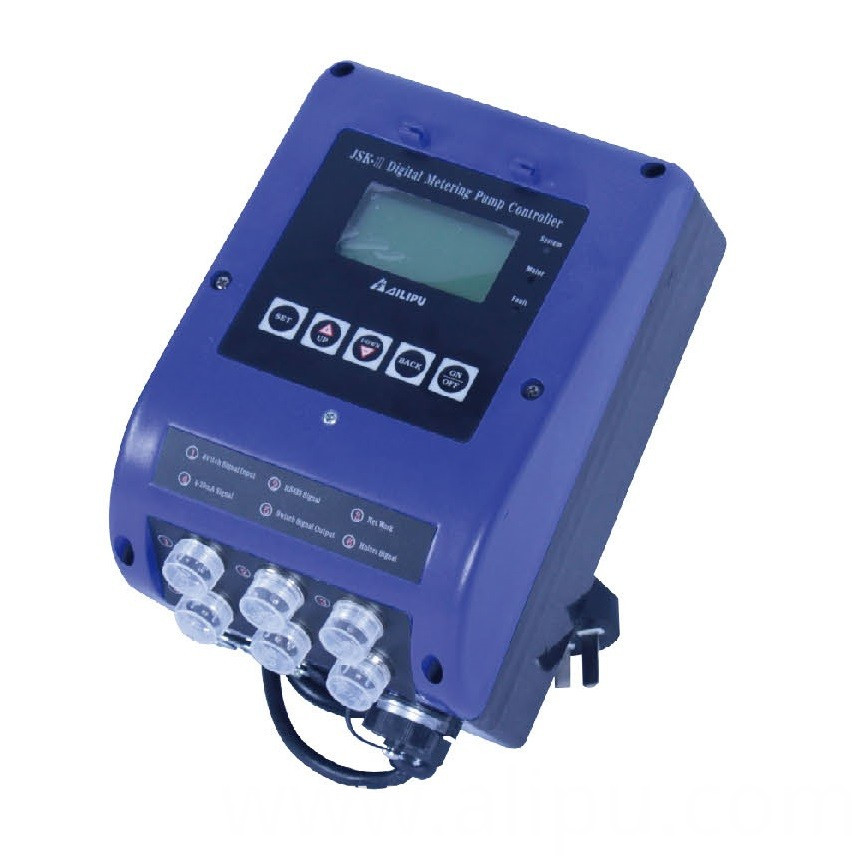

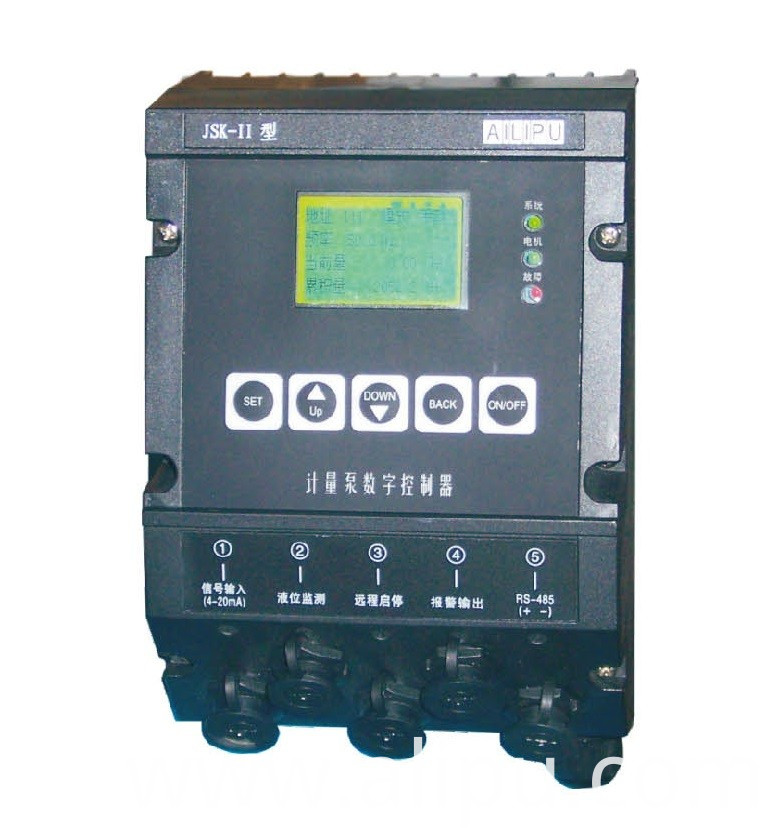

Digital Controller: Technical Parameter

* Ambient Temp: 0 --- 50℃
* Input Control Signal (standard): 4 ---20 mA
* Power Supply (standard): 220V +/- 10%, 1 phase, 50Hz
* Highest loaded power: 0.55KW
* Remote ON/OFF: Dry Contact switch
* Alarm - Output: 220V switch
* Signal Input:
     A: 4 --- 20mA simulation signal
     B: Hall signal: Use Non-touching Hall signal to change pulse into flow signal
                                   Wave: Rectangle
                                    Extent: Over 3.5V
     Output Voltage: +/- 12VDC

Our Company

Diaphragm Dosing pump water industrialDiaphragm Dosing pump water industrial

Diaphragm Dosing pump water industrialDiaphragm Dosing pump water industrial

Diaphragm Dosing pump water industrial
Our Certifications
Exhibitions
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, and our factory has the independent research and development capacity

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer sample but it must be paid

Q: What is your terms of payment ?

A: TT, LC. etc.....

Our enterprise since its inception, constantly regards product good quality as organization life, constantly improve production technology, strengthen merchandise high quality and continuously strengthen enterprise total good quality administration, in strict accordance with all the national standard ISO 9001:2000 for Industrial Diaphragm Dosing Pump. The product will supply to all over the world, such as: Uzbekistan,Madagascar,Cocos (Keeling) Islands. We severely promise that we give all the customers with the best quality goods the most competitive prices and the most prompt delivery. We hope to win a resplendent future for customers and ourselves.
