Factory Free sample for Stainless Steel Head Solenoid Dosing Pump Water Treatment Chemical Solenoid Metering Pump supply to China Macau Factory

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB
    Min. Order: 10 Bag/Bags
    Delivery Time: 10 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

"Sincerity, Innovation, Rigorousness, and Efficiency" may be the persistent conception of our organization to the long-term to build together with shoppers for Solenoid Driven Metering Pumps,Wastewater Treatment Dosing Pump,Microprocessor-based Digital Control. we have been paying attention on all information to insure each product or service glad by our customers.

Factory Free sample for Stainless Steel Head Solenoid Dosing Pump Water Treatment Chemical Solenoid Metering Pump supply to China Macau Factory


Product Description

JCMB series has 6 different types, including manual adjustment type, digital impulse signal control type, 4-20mA electric current signal control type, digital impulse signal feedback control type, digital impulse signal feedback control type, digital impulse signal feedback control with Rs 485 communication interface type and 4-20 mA electric current signal control with Rs 485 communication interface type.


Applications: Municipal water and wastewater treatment, chlorine dioxide dosing, reverse osmosis, food&beverage pharmaceutical etc.


JCMB45 Model



Model

Max. Flow

Max. Pressure

Pipe Dia. (mm)

Suction Pipe Material

Discharge Pipe Material

JCMB45–3/15

3.0 L/H

15bar

In5.5 Out 9.5

PVC

PE

JCMB45–5/10

5.0 L/H

10bar

In5.5 Out 9.5

PVC

PE

JCMB45–10/5

10 L/H

5bar

In5.5 Out 9.5

PVC

PE


 JCMB55 Model

Model

Max. Flow

Max. Pressure

Pipe Dia. (mm)

Suction Pipe Material

Discharge Pipe Material

JCMB55–15/3.2

15 L/H

3.2bar

In6.5 Out 9.5

PVC

PE

JCMB55–20/2.5

20 L/H

2.5bar

In6.5 Out 9.5

PVC

PE

JCMB55–25/2.0

25 L/H

2.0bar

In6.5 Out 9.5

PVC

PE


Solenoid pump outline dimentionSolenoid pump


Products Show

Solenoid metering pump Solenoid dosing pump

1. High Speed Operation

Up to 400 strokes per minute results in high resolution chemical feed, with the elimination of slug-feed effects

2. Compact Size

JCMB pumps are small, quiet, and light weight

3. Long Lasting Diaphragm

The disphragm is made up by PTFE, which is compatible with all kinds of chemicals. The life of the diaphragm is over 5 years, which 5 times as national standard GB/T7782-2008

4. Strong Power Supply Compatibility

Having power automatic recognition, smooth working stability in AC100-240V, and suitable for 50-60Hz range

5. High Protection Level

JCMB series metering pump protection level is ip65 and it can function safely under tough environment

6. Double Valve Ball Structure

The precision ball, seat and guide assembly ensure tight sealing to prevent loss of prime

Our Company

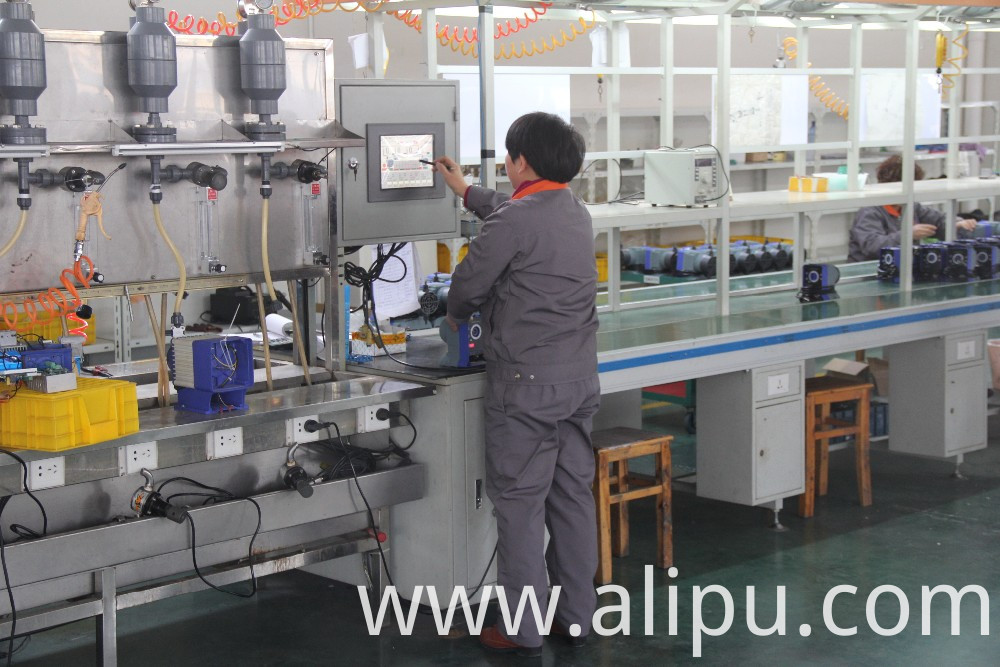

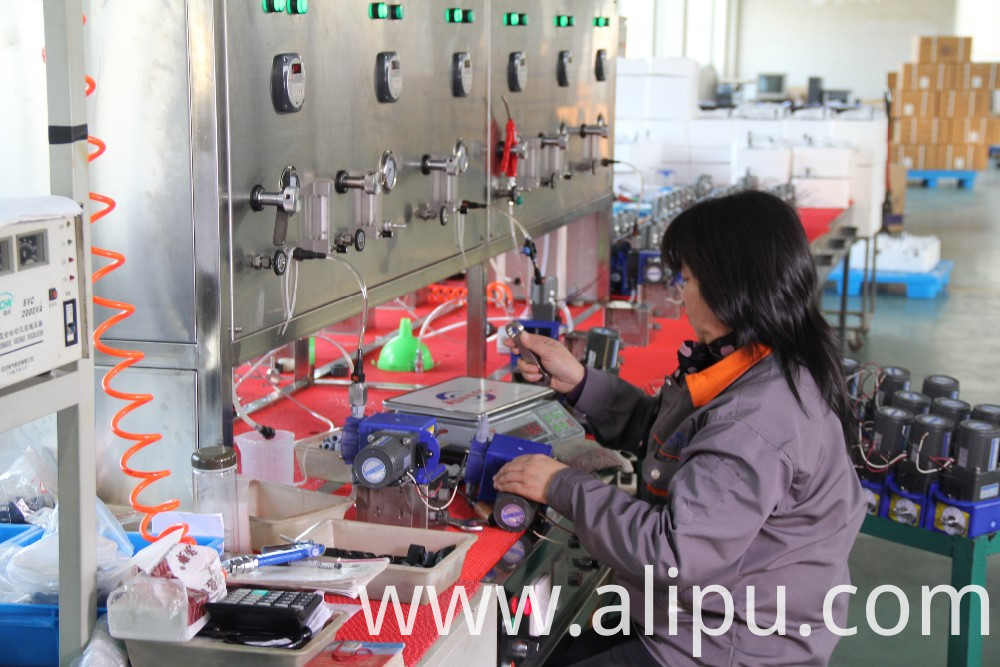

Dosing pump WorkshopDosing pump Workshop2


Metering pump technology company
Our Certifications
ISO14001ISO9001CE1CE2
Exhibitions

pump exhibition1 pump exhibition2

pump exhibition3 pump exhibition4

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, and our factory has the independent research and development capacity

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer sample but it must be paid

Q: What is your terms of payment ?

A:TT, LC. etc.....
