Online Exporter for Supply Various Solenoid Dosing Pump For Chlorine, Chemical Dosing Solenoid Metering Pump, Anti Corrosion Solenoid Chlorine Dosing Pump, Chlorine Dosing Pump of High Quality Chemical Solenoid Metering Pump supply to Bangladesh Factory

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR
    Min. Order: 20 Piece/Pieces
    Delivery Time: 3 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

best service will be provided with full heart. for Simple Operation Solenoid Metering Pump,Metering Pump for Wastewater Treatment,Water Treatment Dosing Pump. We've been looking forward to receiving your enquiries quickly.

Online Exporter for Supply Various Solenoid Dosing Pump For Chlorine, Chemical Dosing Solenoid Metering Pump, Anti Corrosion Solenoid Chlorine Dosing Pump, Chlorine Dosing Pump of High Quality Chemical Solenoid Metering Pump supply to Bangladesh Factory

Product Description

Applications: Municipal water and wastewater treatment, chlorine dioxide dosing, reverse osmosis, food&beverage pharmaceutical etc.

JCMB45 Model



Model

Max. Flow

Max. Pressure

Pipe Dia. (mm)

Suction Pipe Material

Discharge Pipe Material

JCMB45–3/15

3.0 L/H

15bar

In5.5 Out 9.5

PVC

PE

JCMB45–5/10

5.0 L/H

10bar

In5.5 Out 9.5

PVC

PE

JCMB45–10/5

10 L/H

5bar

In5.5 Out 9.5

PVC

PE


JCMB55 Model

Model

Max. Flow

Max. Pressure

Pipe Dia. (mm)

Suction Pipe Material

Discharge Pipe Material

JCMB55–15/3.2

15 L/H

3.2bar

In6.5 Out 9.5

PVC

PE

JCMB55–20/2.5

20 L/H

2.5bar

In6.5 Out 9.5

PVC

PE

JCMB55–25/2.0

25 L/H

2.0bar

In6.5 Out 9.5

PVC

PE





Solenoid pump outline dimentionSolenoid pump
Products Show

        Solenoid pump Solenoid pump



1. High Speed Operation

Up to 400 strokes per minute results in high resolution chemical feed, with the elimination of slug-feed effects

2. Compact Size

JCMB pumps are small, quiet, and light weight

3. Long Lasting Diaphragm

The disphragm is made up by PTFE, which is compatible with all kinds of chemicals. The life of the diaphragm is over 5 years, which 5 times as national standard GB/T7782-2008

4. Strong Power Supply Compatibility

Having power automatic recognition, smooth working stability in AC100-240V, and suitable for 50-60Hz range

5. High Protection Level

JCMB series metering pump protection level is ip65 and it can function safely under tough environment

6. Double Valve Ball Structure

The precision ball, seat and guide assembly ensure tight sealing to prevent loss of prime

JCMB Series

JCMB-S

1. Manual  flow adjusting

2. Pump On/Off indicator

3. Displayable frequency percentage


JCMB-C Auto-Adjust (Digital impulse signal control)

Two control modes available:

1. Manual

2. Auto: controlled by the signal received  (Digital pulse signal)


JCMB-H Auto-Adjust (4-20mA electric current signal control)

1. Manual

2. Auto: signal received  (4-20mA electric current signal)


JCMB-F Auto-Adjust (Digital impulse signal control feedback)

1. Manual

2. Auto: signal received (Digital pulse signal ) and feedback operating signal for remote control.


JCMB-CR Auto-Adjust (Digital impulse signal control feedback with Rs485 communication interface)

1. Manual

2. Auto: signal received (Digital pulse signal ) and feedback operating signal for remote control with Rs485 communication interface by MODBUS protocol.



JCMB-H Auto-Adjust (4-20mA electric current signal control with Rs485 communication interface)

1. Manual

2. Auto: signal received (4-20mA electric current signal) with Rs485 communication interface: using MODBUS protocol.

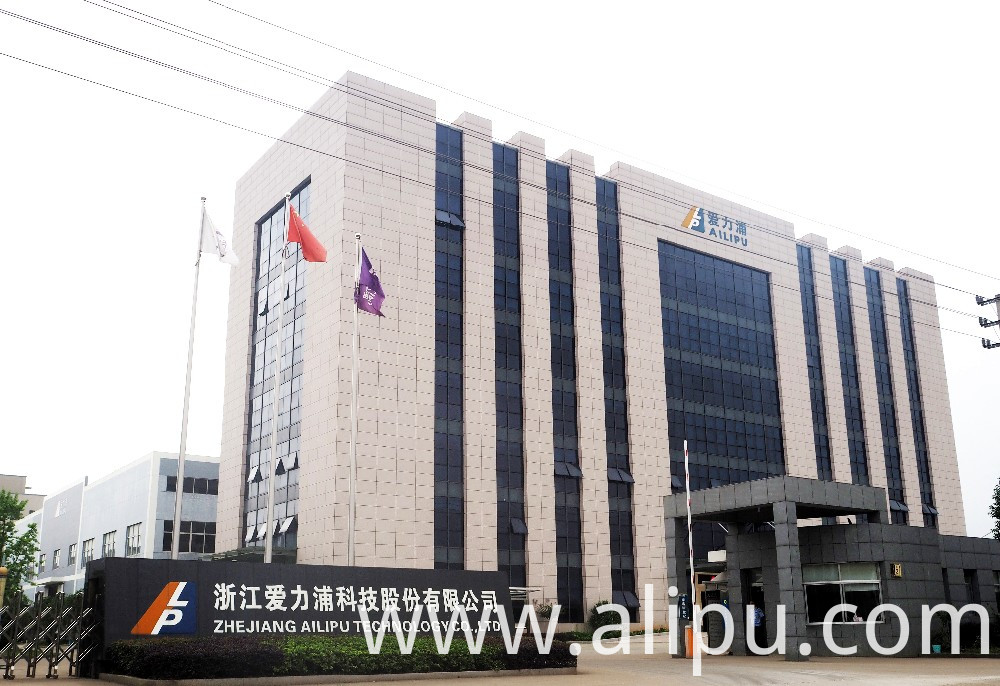

Our Company
